Drill buckets are mainly used for sandy soil, sludge, clay , muddy sandy gravel and weathered soft formation . The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions . the welding angle of bucket teeth can be designed according to formation conditions so that the drilling buckets can keep high efficiency of soil cutting amount in any formation conditions .
The bottom cove if made of high-strength Mn plate, and the cutting dege includes single-layer type and double-layer type; the soul inlet also includes single-bottom type and double-bottom type .

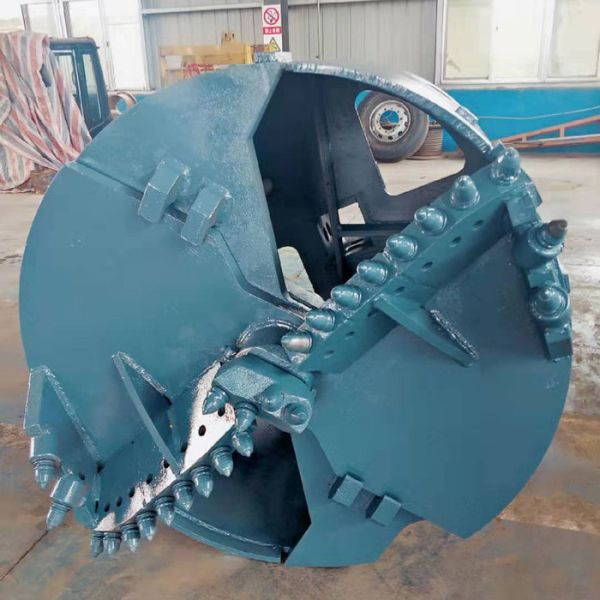

Rock Drilling Buckets
Applicable layers: very dense sand, gravel and medium hard rocks and up to corse gravel, etc..Double cut rock bucket is recommended in uncased bores or for the bigger diameters and for scant pile walls.
Features: Cylindrical barrel or conical barrel(optional).
Customized Drilling Buckets
(1). Kelly Box: design various type and size 130*130, 150*150,200*200 or as required.
(2).Shell Height: design as demand, according to the piling diameter and soil condition prolong or shorten, increase of efficiency by drilling more.
(3).Cutter: single cutter or double cutter and single bottom or double bottom design as demand;
(4).Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
(5).Model of Teeth:
Rock Bits:B47K20H, B47K19H, B47K17H, 3050, 3060, 3065,C30, C31HD, B85, B43H,etc..
Clay Teeth:18TL, 18HD, 25VIP, 18VIP, 25T, 25HD, 22T,833-18,855,etc
ROCK DRILLING BUCKETS TECHNICAL DATA
| Driling Dia mm | Shell Dia mm | Shell Length mm | Shell Thickness mm | Teeth Qty pcs | Single cut Weight kg | Double cut Weight kg |
| 600 | 550 | 1200 | 16 | 5+2 | 712 | 682 |
| 700 | 650 | 1200 | 1620 | 6+2 | 866 | 826 |
| 800 | 700 | 1200 | 16/20 | 7+2 | 971 | 921 |
| 900 | 800 | 1200 | 16/20 | 10+1 | 1130 | 1061 |
| 1000 | 900 | 1200 | 16/20 | 8+4+2 | 1280 | 1190 |
| 1100 | 1000 | 1200 | 16/20 | 10+4+2 | 1440 | 1360 |
| 1200 | 1100 | 1200 | 16/20 | 10+4+2 | 1643 | 1513 |
| 1300 | 1200 | 1200 | 16/20 | 12+4+2 | 1938 | 1778 |
| 1400 | 1300 | 1200 | 16/20 | 13+4+2 | 2100 | 1919 |
| 1500 | 1400 | 1200 | 16/20 | 14+4+2 | 2304 | 2164 |
| 1600 | 1500 | 1200 | 16/20 | 16+4+2 | 2668 | 2428 |
| 1700 | 1600 | 1000 | 16/20 | 16+4+4 | 2535 | 2405 |
| 1800 | 1700 | 1000 | 20 | 18+4+4 | 3207 | 2957 |
| 2000 | 1900 | 800 | 20 | 20+4+4 | 3567 | 3247 |
| 2200 | 2100 | 800 | 20 | 22+4+4 | 4137 | 3787 |
| 2500 | 2400 | 800 | 20 | 24+4+4 | 4716 | 4236
|
Customized Drilling Buckets
(1). Kelly Box: design various type and size 130*130, 150*150,200*200 or as required.
(2).Shell Height: design as demand, according to the piling diameter and soil condition prolong or shorten, increase of efficiency by drilling more.
(3).Cutter: single cutter or double cutter and single bottom or double bottom design as demand;
(4).Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
(5).Model of Teeth:
Rock Bits:B47K20H, B47K19H, B47K17H, 3050, 3060, 3065,C30, C31HD, B85, B43H,etc..
Clay Teeth:18TL, 18HD, 25VIP, 18VIP, 25T, 25HD, 22T,833-18,855,etc
